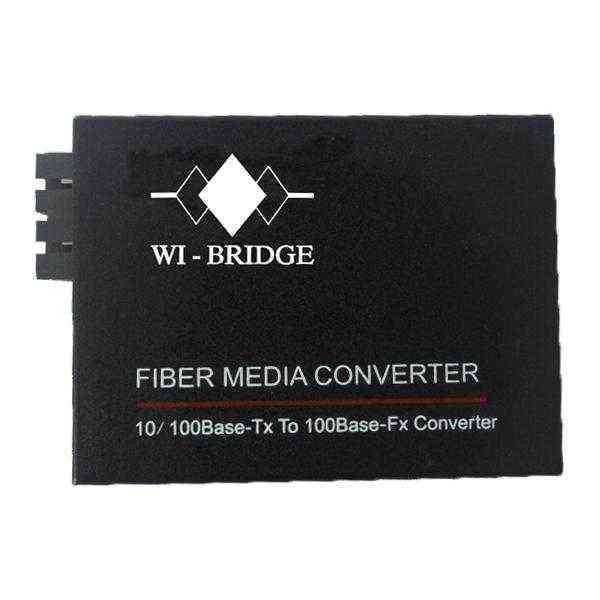

Wi - Bridge Fiber Media Converter-20KM- 100BaseTx to 100BaseFx
- sold out This item is currently out of stock
WI-BRIDGE fast Ethernet media converter mediates between a 10/100 Base-TX segment and a 100Base-FX segment.
It is primarily designed for large, higher speed/ bandwidth demanding work groups that require expansion of the Ethernet network. It can extend the conventional 10M Ethernet or 10/100M fast Ethernet to 2km-20km via the fast Ethernet fiber optical line. It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of broadband WAN established by data network operators. It can be inserted into rack-mount chassis or inserted into standalone shell.
- Supports Single-mode single fiber
- Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX standard
- Auto-detection of half/full duplex transfer mode for TX port
- Auto-negotiation of 10/100Mbs rate and Auto-MDI/MDIX for TX port
- Extend fiber distance up to 20km for 9um single-mode fiber
- Indication light: POW: Power Indicator, 10/100: Speed Indicator, LINK/ACT
- Transmission Indicator, FDX: Full-duplex or half duplex Indicator, FX: Fiber Indicator,
- TX: Raster Line Indicator
- Easy-to-view LED indicators provides status to easily monitor network activity
INTERFACE: UTP: RJ-45. Fiber: SC
WAVE LENGTH: Single Mode: 1310/1550nm
NOTE: 1 Product is pair of 1310 & 1550nm
